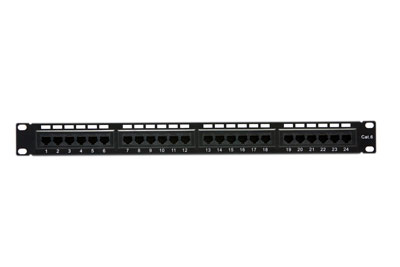

Patch Panel 19in, 1U 24xRJ45 cat6 UTP, black Code:
4742455000322
Price
|
Availability:
In Stock
|
Weight:
2.259 kg/pc
|
Volume:
0.0098 m3/pc
|
Wholesale qty:
25pc
|
|
|
|
 |
Overview
Manage traffic simply and effectively in Ethernet applications with Telect's Ethernet Patch Panels. Each compact panel is equipped with IDC terminated PCB assemblies in either 568A or 568B pinouts.
Applications:
- 10/100/1000 Ethernet connectivity
- Data applications
- Private/enterprise networks
- T1/DDS TDM connectivity and patching
|
|
Primary Benefits:
- Versatility for a variety of applications, including Ethernet 10/100/1000, T1 and DDS patching
- 24- and 48-position Category 5e and Category 6e panels available, 1RU and 2RU 19-inch rack mounting
- Rugged steel construction with rolled edges to eliminate flex during termination
- Integrated rear cable management bar provides cable strain relief
- Multiple cable tie locations to meet your standard practices and simplify moves, adds, changes and maintenance
- Clear write-on designation and easy-to-identify ports
- Complete line of CAT5E and CAT6E patch cords in various standard lenghts and colours also available
CAT6 panels
- Exceed Category 6 TIA/EIA-568-B.2 specifications for channel and link performance
- Handle data rates exceeding 250 MHz
- Angeled and paired IDC pins provide a gas-tight connection and improved cable retention to maximize CAT6 performance
|
|
Specification
|
| Wiring |
T568A or T568B |
| Insertion life |
750 cycles minimum, <0.2dB |
| Housing |
High-impact UL94v-0 rated thermoplastic |
| IDC Blocks |
Tin lead plated connector accepts 22-26 AWG solid UTP cable |
| Contact pressure |
100 grams min. |
| Insulation resistance |
200 megaohms |
| Contact resistance |
10 milliohms max. |
| Voltage/current |
140 VDC @ 1.5 amps max. |
| Dielectric withstand |
1000 VAC RMS @ 60 Hz min. |
| Compliance |
part 68, FCC Rules
TIA/EIA Category 5E or 6 specification UL Listed |
|

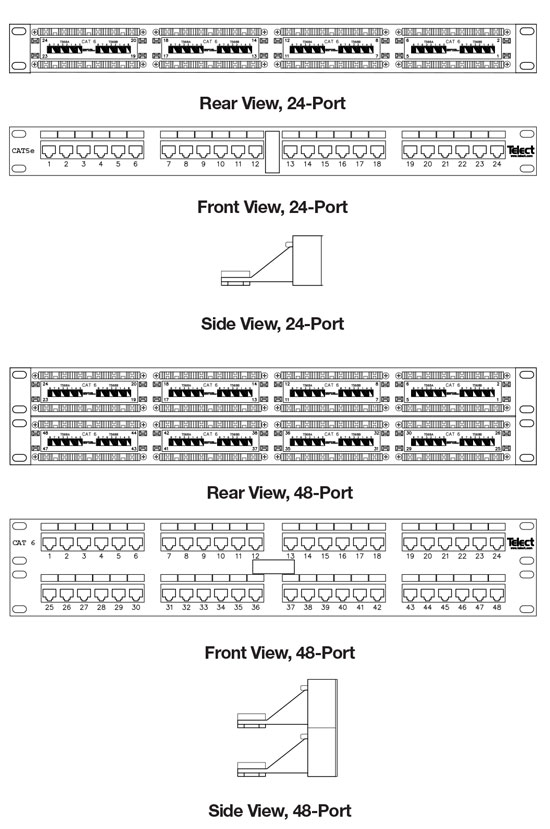

Panel Dimensions
|
| 24-Port Panels |
48.26cm W x 4.45cm H x 8.89cm D |
| 48-Port Panels |
48.26cm W x 8.89cm H x 8.89cm D |
 |
|
|
|
