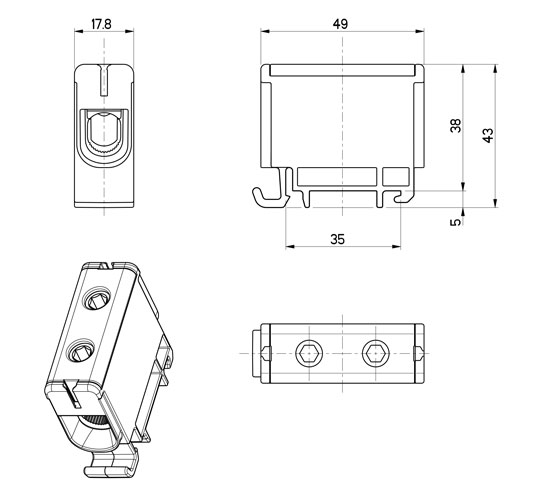

Pilt on illustreeriv
|
Hargnemisklemm Al/Cu UK50/1N, 1P (2holes) 2.5-50mm² 145/160A 1000VAC/ 1500VDC, Hex5 4Nm 2.5..4mm²/ 12Nm 6..50mm², TS35, MaxPro, sinine Kood:
1914104
Hind
Tootja
:
|
Saadavus:
Laos
|
Kaal:
0.039 kg/tk
|
Maht:
0.0001 m3/tk
|
Hulgipakendi kogus:
10tk
|
|
|
|
 |
|
| Name |
Terminal Block Al/Cu 2,5-50mm², blue |
| Working temperature (ºC): |
max 80ºC |
| Housing: |
polyamide |
| Fastening: |
DIN-rail |
| Screw head: |
hexagon
|
| Screw head size: |
5 mm |
| Colour: |
grey |
| Wire mm²: |
Cu 2,5-50 mm² Al 6-50 mm² |
| Nominal Insulation Voltage V: |
1000 V |
| Nominal Rated Current A: |
Cu 160 A, Al 145 A |
| Number of poles: |
1 |
| Standard: |
EN 61238-1, EN 60947-7-1 |
| Nominal Tightening Torque Nm: |
1,5 Nm (1,5-2,5 mm2
5 Nm (4-10 mm2)
10 Nm (16-50 mm2)
|
|
|
|
