Pilt on illustreeriv
|
Abikontakt GC1-K, 2NO+2NC, SGC1-K Kood:
SGC1-KN22
Hind
Tootja
:
|
Saadavus:
Laos
|
Kaal:
0 g/tk
|
Maht:
0 m3/tk
|
|
|
|
|

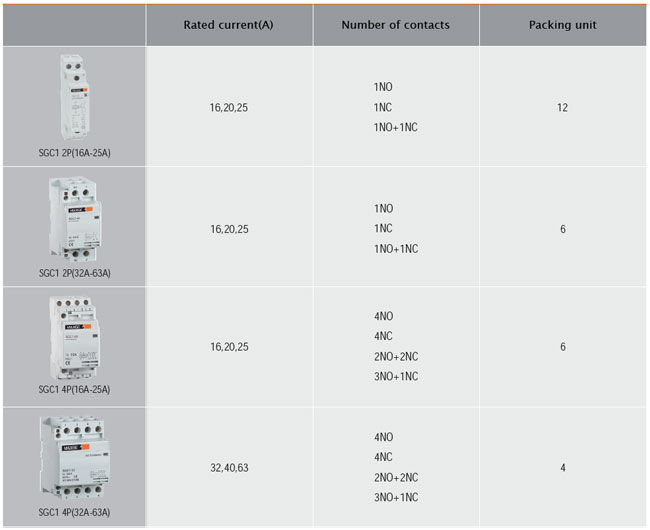

Specifications
| Product or component type |
Auxiliary contact block |
| Mounting location |
Front |
| Control type |
Immediate |
| [Ue] rated operational voltage |
600VAC 50..60Hz |
| [Ui] rated insulation voltage |
600V conforming to IEC 60947-4-1
690V conforming to UL 60947-4-1
600V conforming to CSA C22.2 No 60947-4-1
|
| [Uimp] rated impulse withstand voltage |
6kV |
| Standards |
EN/IEC 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
GOST 30011.4.1
JIS C8201-4-1
UL 508, 2.10 Annex J2
|
| Product certifications |
CE
CCC
UL
CSA
EAC
UKCA
|
Compatibility
| Irms rated making capacity |
110A at <=690VAC conforming to IEC 60947 |
| Permissible short time rating |
80A 1s
60A 3s
110A 100ms
|
| Assembled fuse rating |
13A gG at <=690V conforming to IEC 60947 |
| Minimum switching current |
5mA |
| Minimum switching voltage |
17V |
| Non-overlap distance |
0.1mm |
| Insulation resistance |
>10MOhm |
| Connection terminals |
Screw clamp terminals 1 solid/cap [1x0.5..2.5mm2], 1 flexible with cable end
Screw clamp terminals 1 solid/cap [1x0.75..4mm2], 1 flexible with cable end
Screw clamp terminals 1 solid/cap [1x1..6mm2], 1 flexible
Screw clamp terminals 2 solid/cap [2x0.5..2.5mm2], 1 flexible with cable end
Screw clamp terminals 2 solid/cap [2x0.75..4mm2], 1 flexible with cable end
Screw clamp terminals 2 solid/cap [2x1..6mm2], 1 flexible
|
| Tightening torque |
1.3N·m with screwdriver Pozidriv No2
1.3N·m with screwdriver pozidriv No2
|
Environment
| Protective treatment |
TC conforming to IEC 60068 |
| Ambient air temperature for storage |
-40..80°C |
| Ambient air temperature for operation |
-25..60°C |
|
|
|
|
